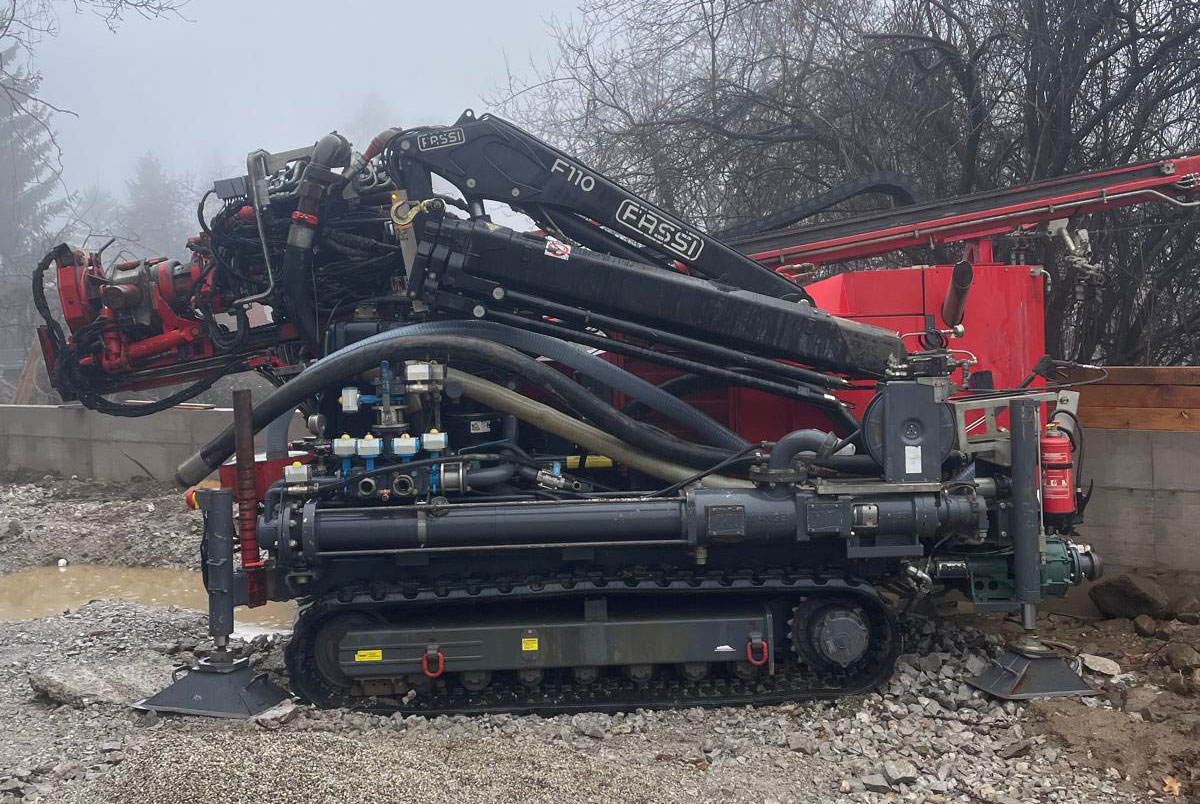

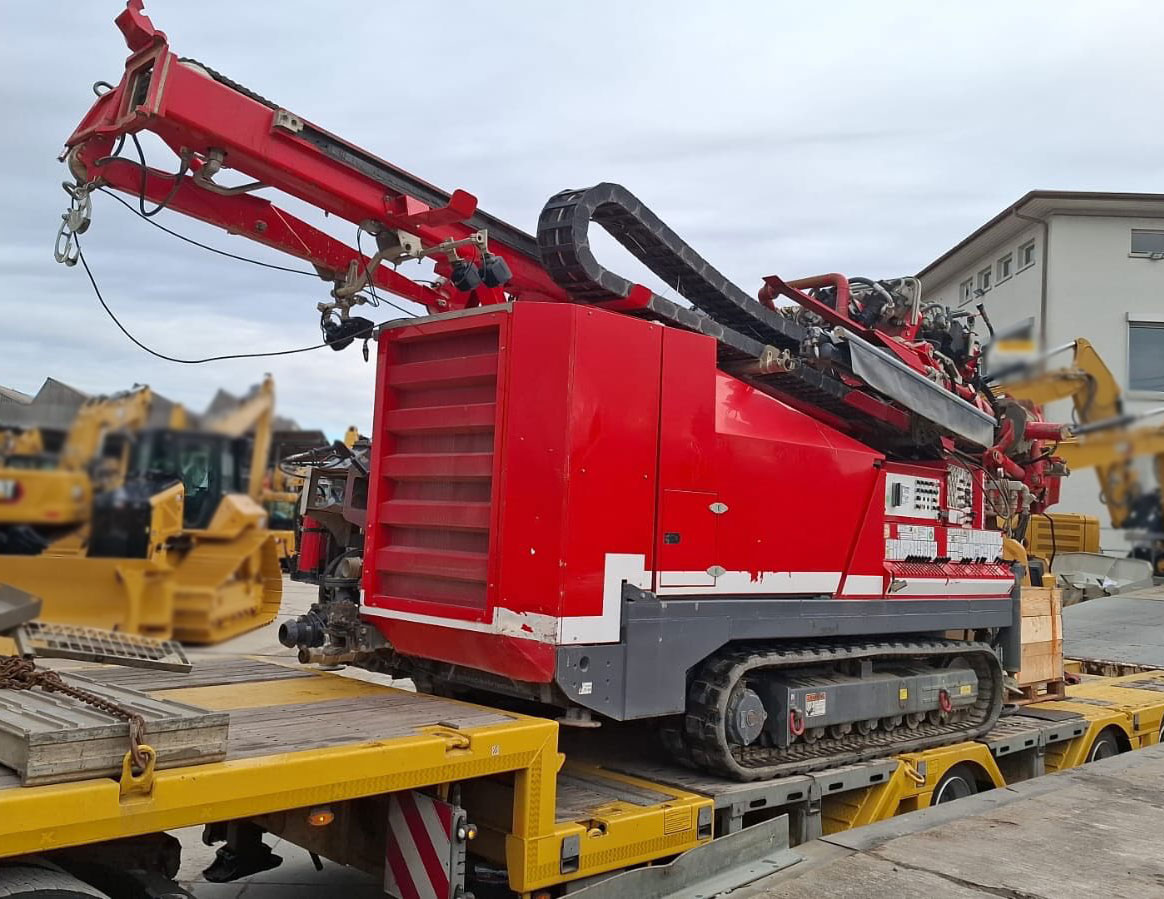

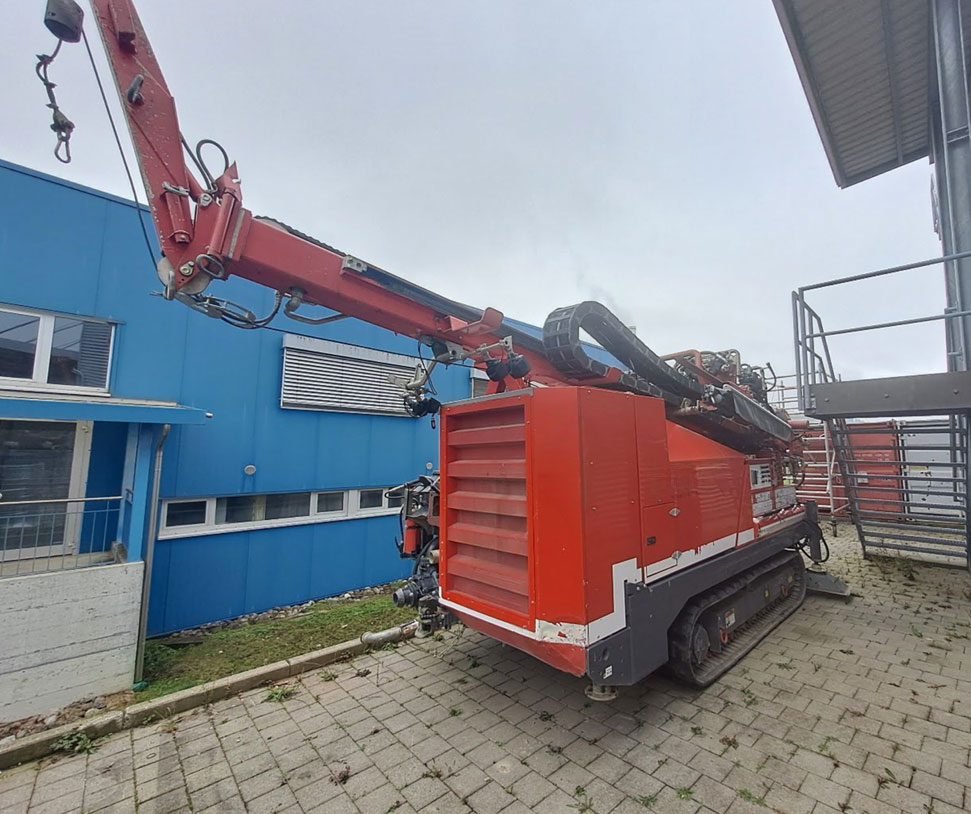

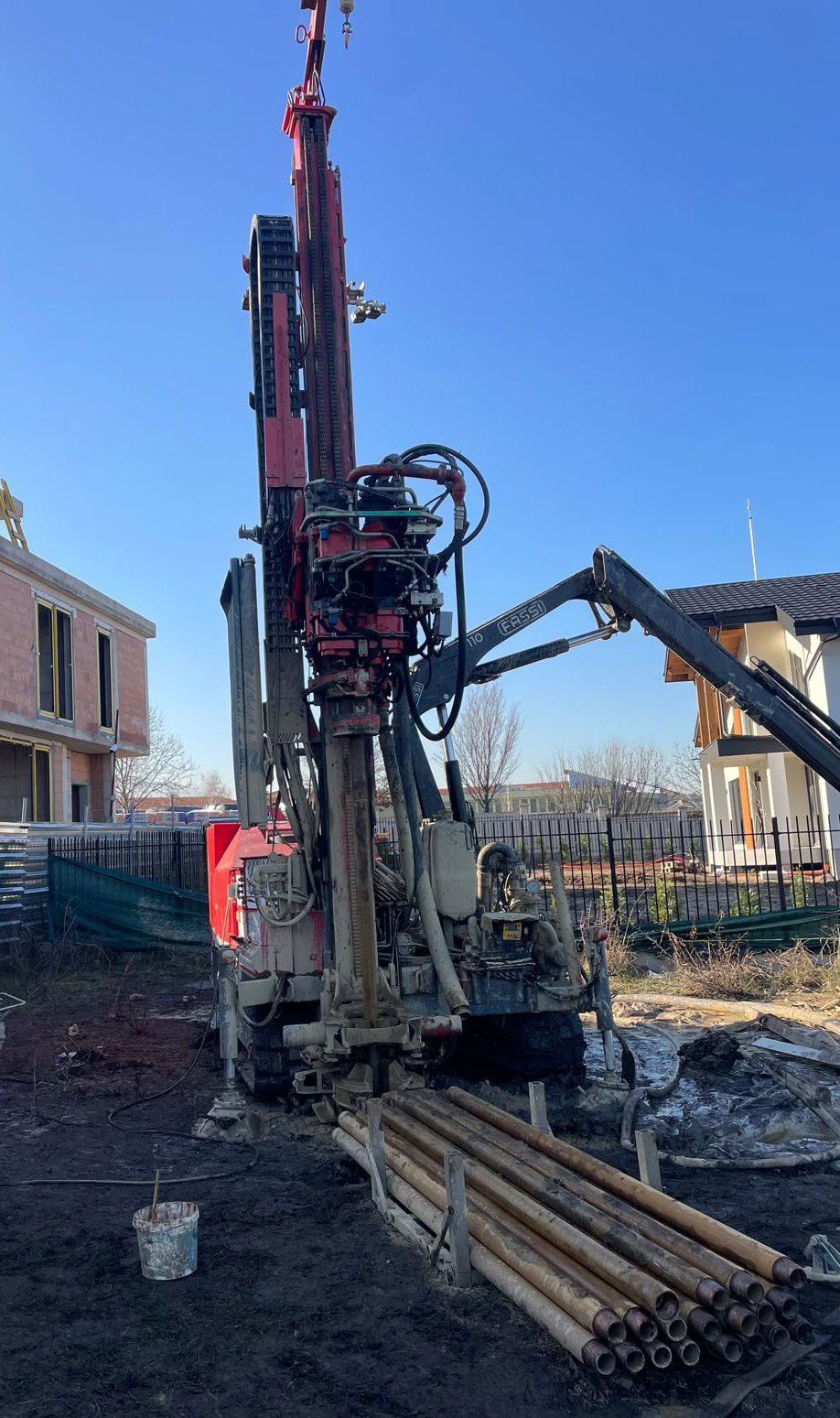

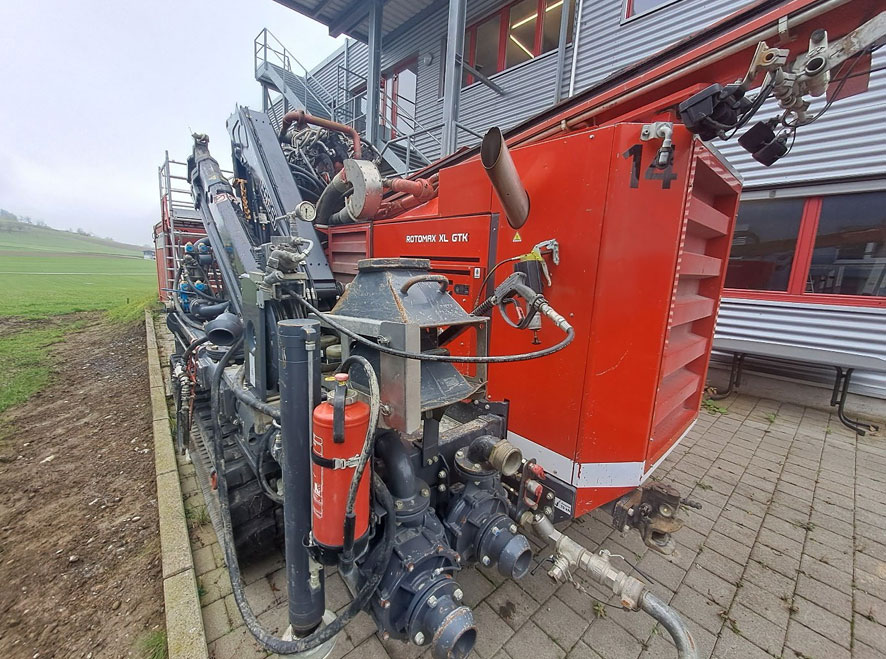

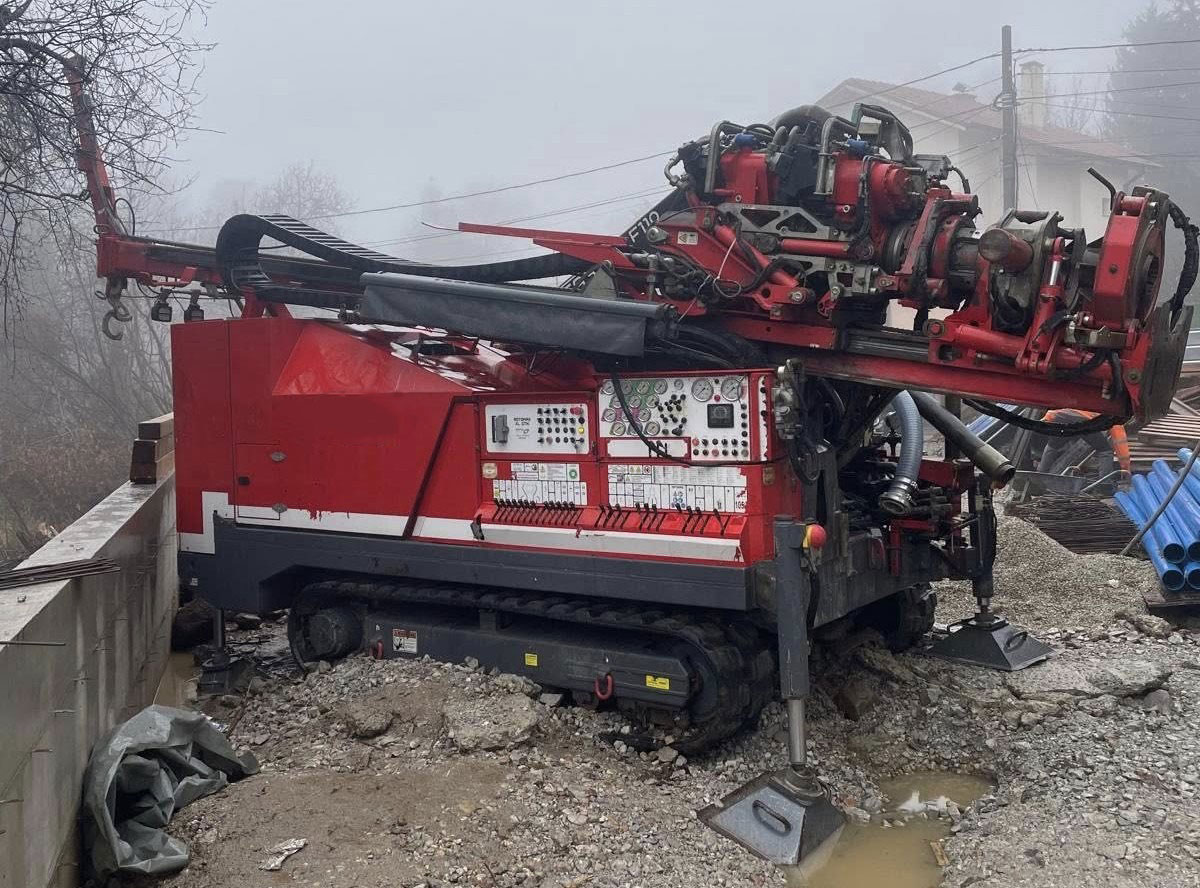

Geotech Rotomax XL GTKI Geotechnical Drill Rig

Used Geotech Rotomax XL GTKI Geotechnical Drill Rig for sale.

7,500 Hours

Sandwich chassis with integrated fuel and hydraulic tanks

240L diesel

550L hydraulic oil (HLP46)

4-fold hydraulic stabilisers

Crawler undercarriage with 450mm rubber tracks

Fixed track width approx. 2,500mm

Total weight: 14,500kg

Engine & Hydraulics

6-cylinder turbo diesel engine – 205 kW (278 HP)

Stage IV emissions with DPF & regeneration burner

Basic hydraulic system with additional hydraulic connections

Central lubrication system (mast + spool head/preventer)

Multiple high-pressure piston pumps (Speck & Dynaset)

Volume flow regulation & flow indicator

Compressor with hydraulic drive + air dryer

Pressure air control system

26 bar air hammer oiler (8.5L)

Drilling System

Rotomax XL-GTi / XL-GTCi drilling gearbox (4-speed)

Pull-down drill carriage with support plate

Clamping head Rotomax

Gearbox adjustment, shifting & swivelling devices

Flushing drain pot between gearbox heads

Drill pipe retaining clip (Ø419mm)

2-piece pressure compensator feed

Mast extension with rope deflector

1,600kg winch with 150m x 8mm rope (radio remote controlled)

Pumps & Fluid Systems

Coil pump (2-stage 16/1800 & 1-stage 8/1800)

Eccentric worm-drive pump (Wangen KL65S)

Water control with compressed air flap valves
