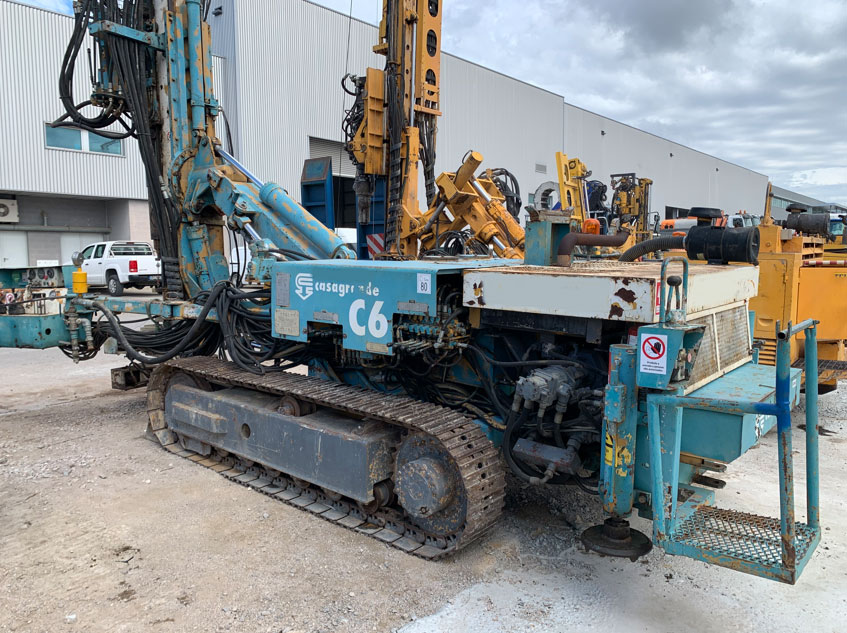

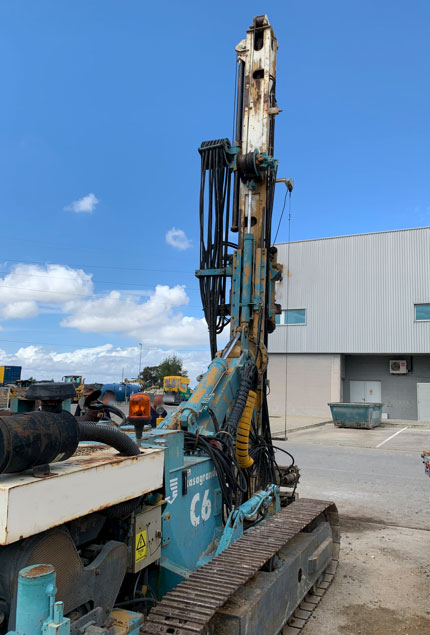

Casagrande C6 Micro Piling Rig

Used Casagrande C6 Micro Piling Rig for sale.

7,600 Hours

Configuration:

T1000-3V Rotary Head

Krupp D21 Hydraulic Hammer

Hydraulic SPT Hammer for Standard Penetration Testing (SPT)

Suitable Applications

Auger Drilling

Down-the-Hole (DTH) Hammer Drilling

Hollow Stem Auger Drilling

Diamond Core Drilling

T1000-3V Rotary Head

Working Pressure: 200 bar

Maximum Pressure: 250 bar

Maximum Torque: 1,337 kgm

Maximum Rotation Speed: 283 rpm

Gear Speed Torque Flow

1st 17 rpm 1,337 kgm –

2nd 37 rpm 605 kgm 56 l/min

3rd 142 rpm 157 kgm –

1st (High) 33 rpm 1,337 kgm –

2nd (High) 73 rpm 605 kgm 56 + 56 l/min

3rd (High) 283 rpm 157 kgm –

Base Carrier:

Track Width: 310 mm

Ground Pressure: 8 N/cm²

Travel Speed: 1.5 km/h

Maximum Gradeability: 55%

Main Winch:

Wire Rope Diameter: 10 mm

Rope Length: 73 m

Maximum Line Pull: 20 kN

Winch Speed: 0–54 m/min

Clamp System:

Main Clamp

Clamping Diameter: 40–254 mm

Clamping Force: 145 kN

Breakout Clamp

Clamping Diameter: 40–254 mm

Breakout Torque: 45 kNm

Mast:

Mast Length: 9,660 mm

Rotary Head Stroke: 4,000 mm

Pull-Up Force: 63.5 kN
