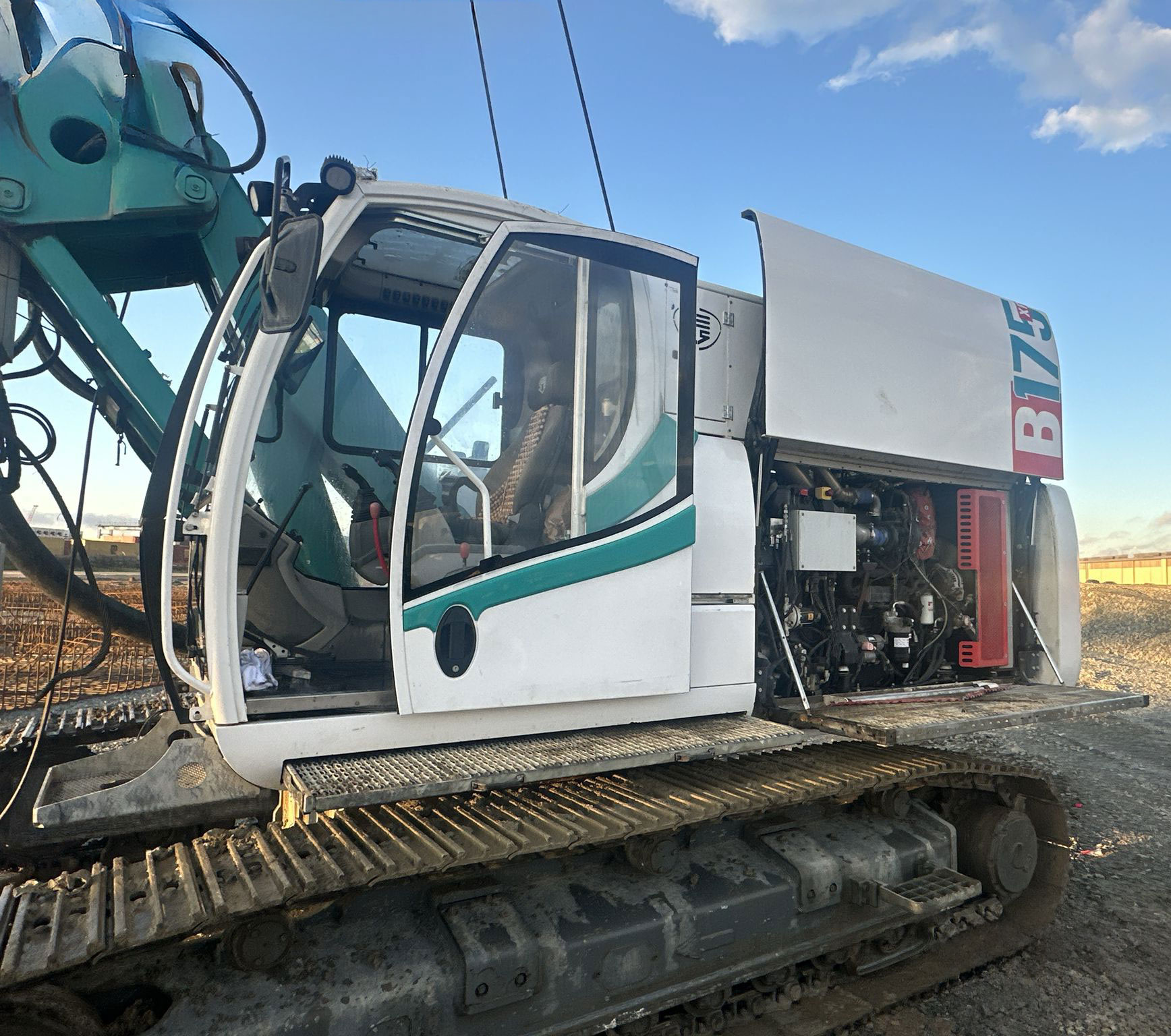

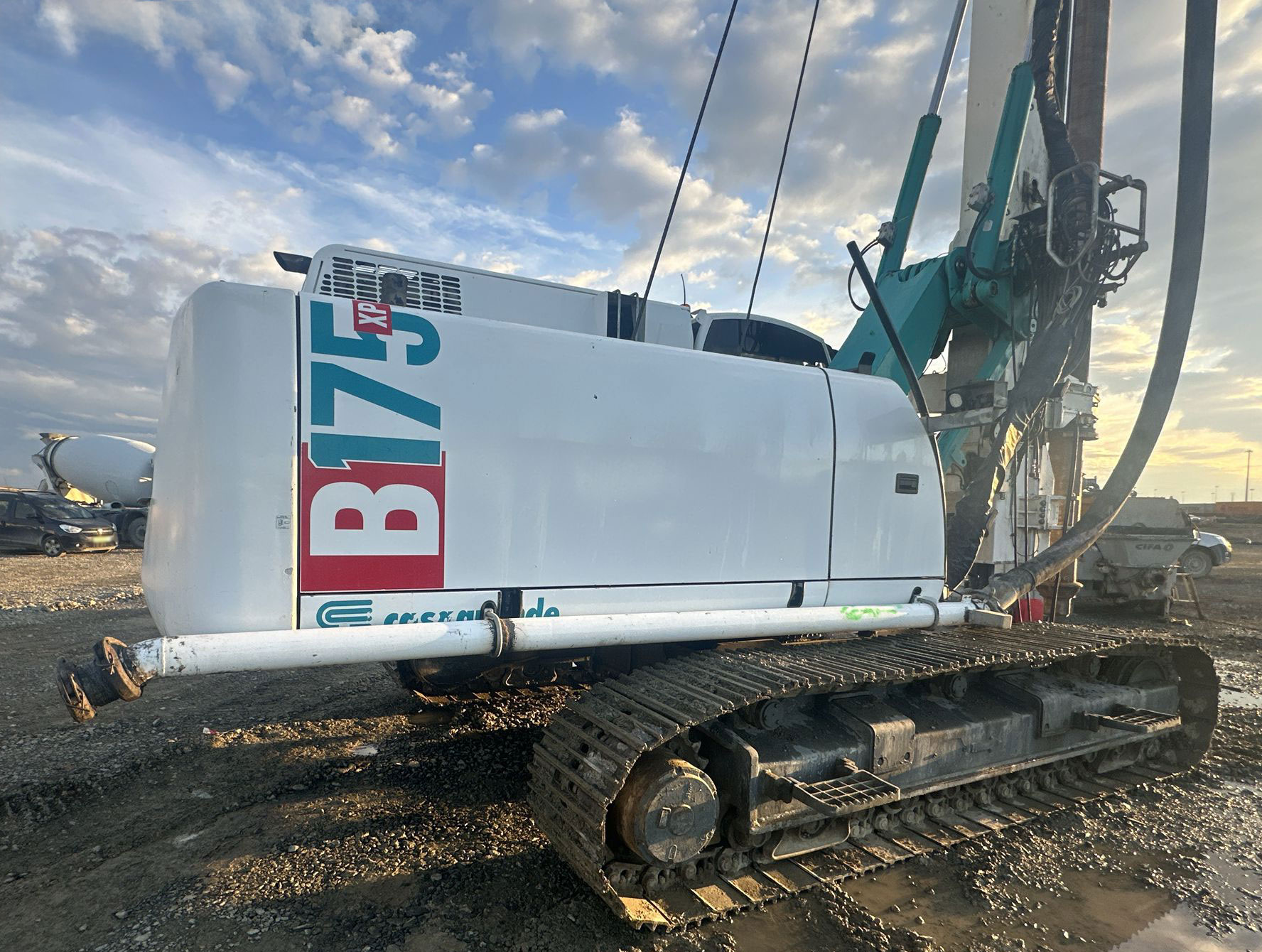

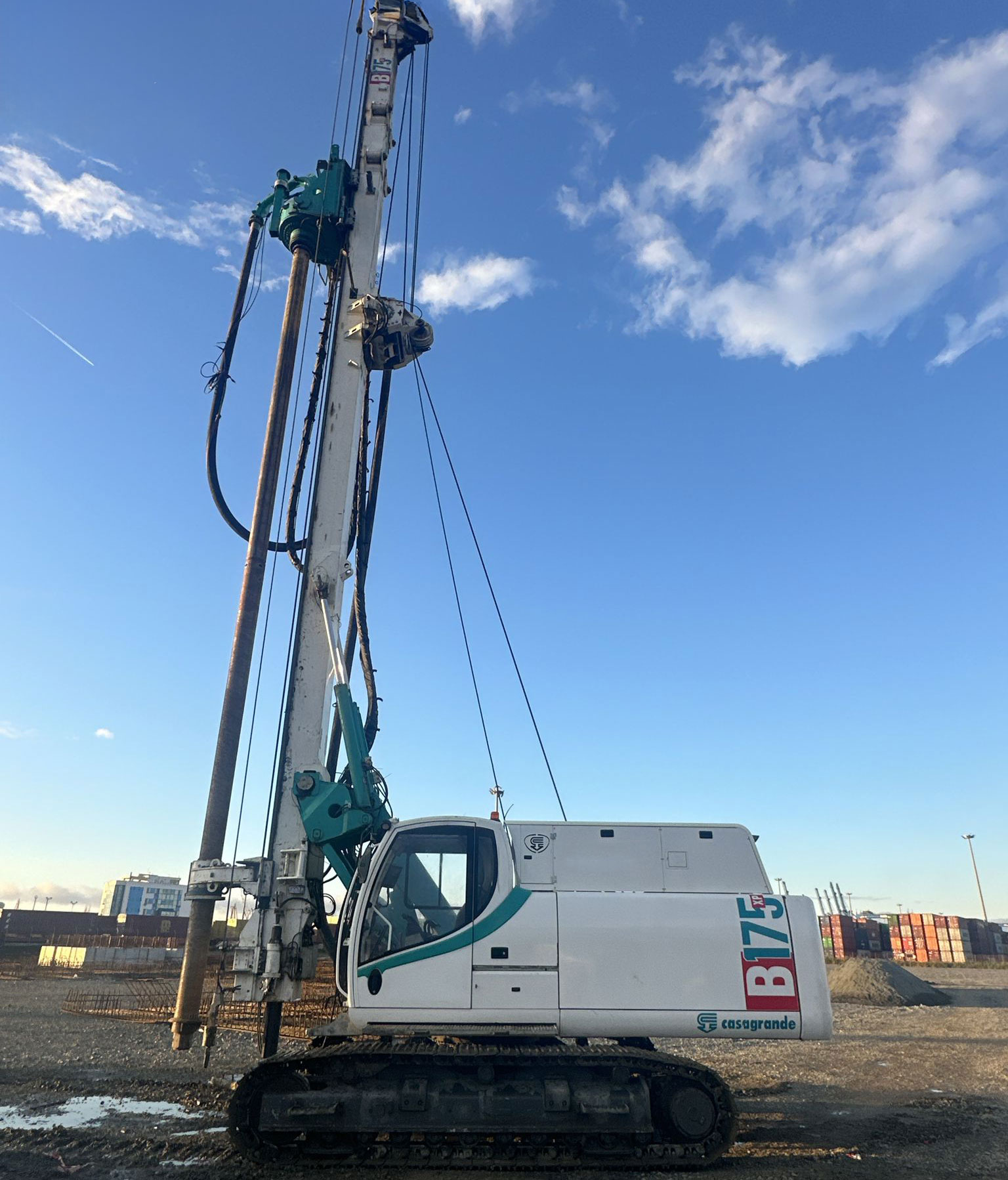

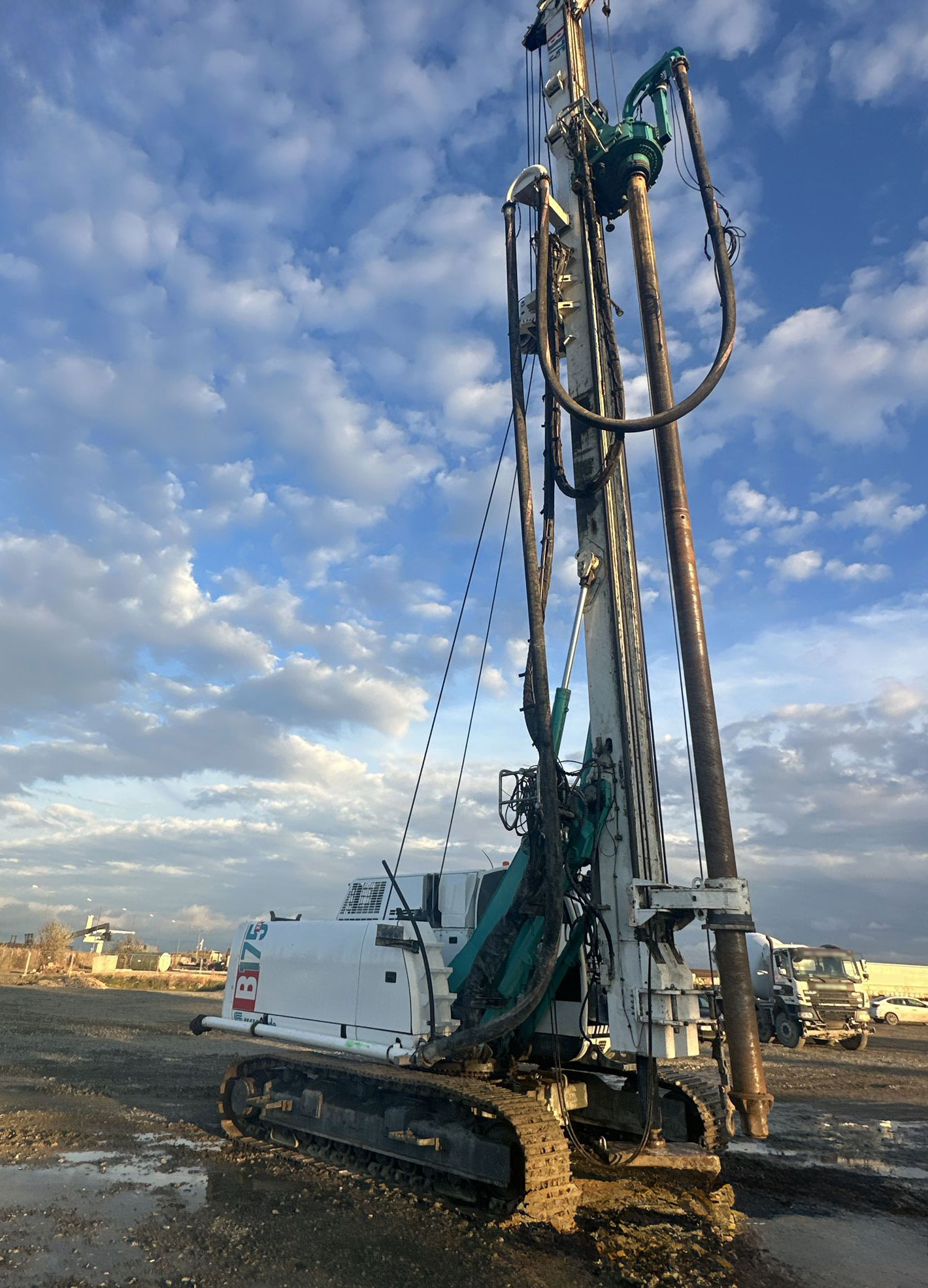

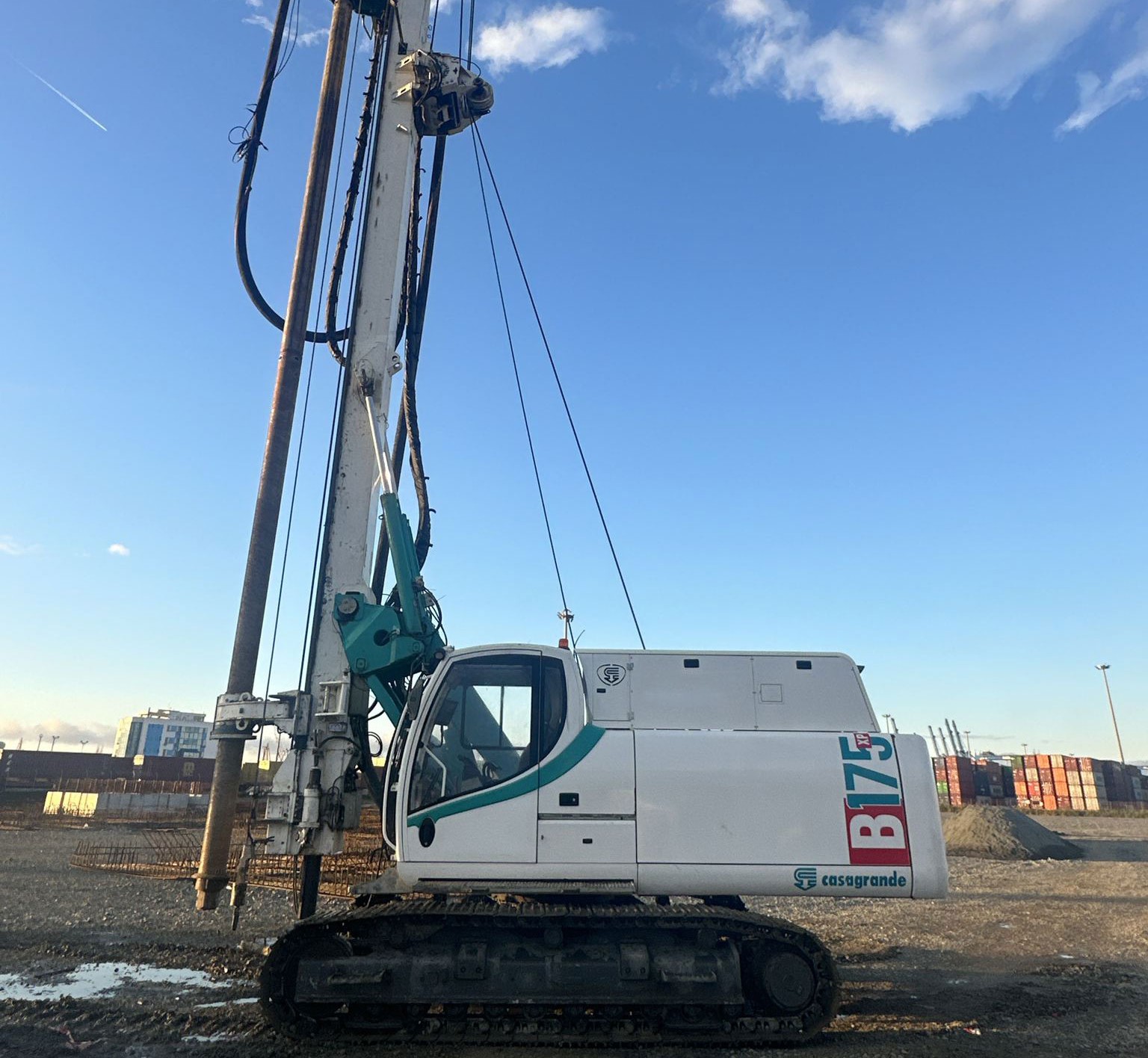

Casagrande B175 XP Rotary/CFA Piling Rig

Used Casagrande B175 XP Rotary/CFA Piling Rig for sale.

3,920 Approx. Working Hours

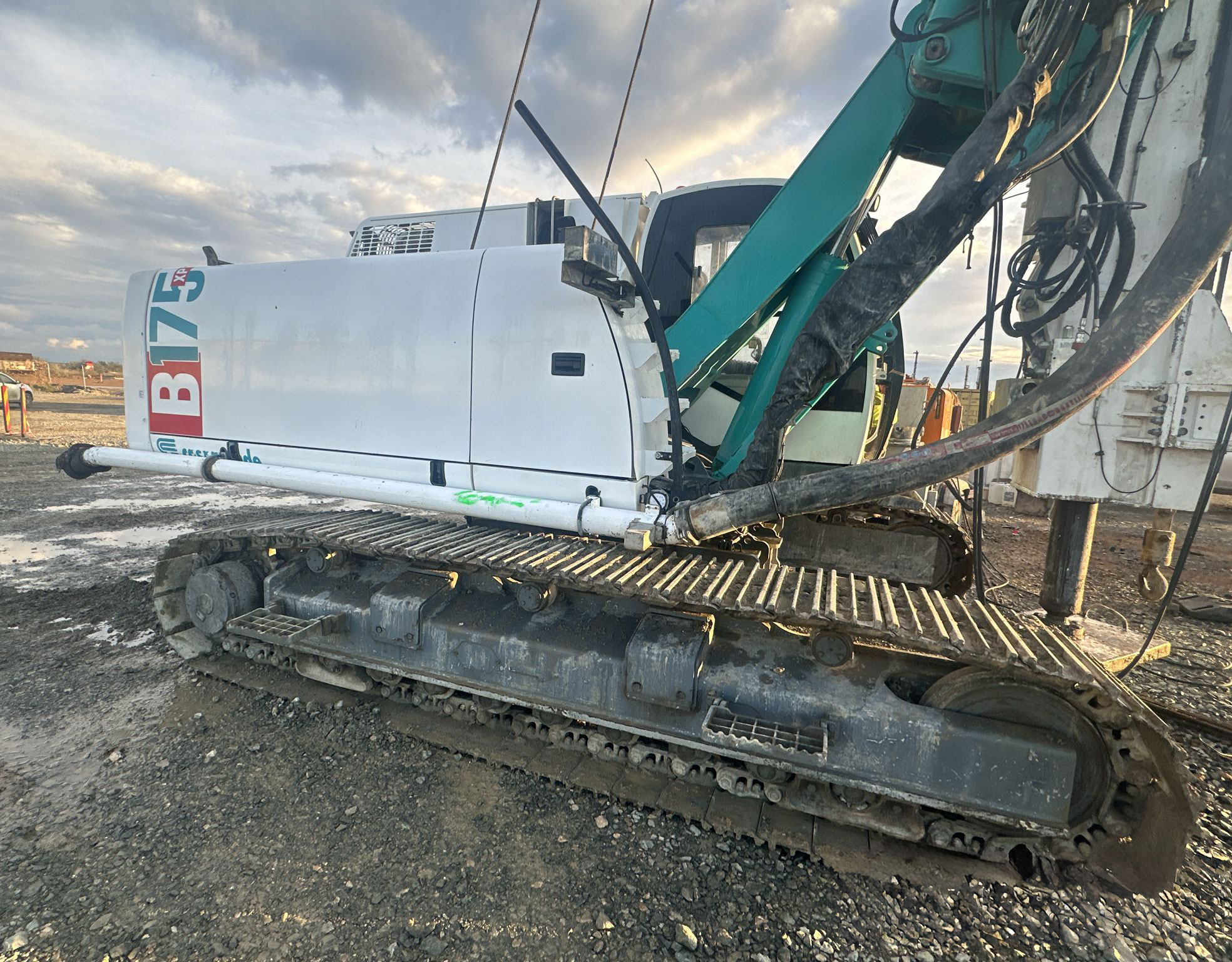

Undercarriage: 2,500 – 3,700mm (close — open)

Diesel Engine: Cummins QSB 6.7 194 kW @2200 rpm — Tler 4F

Rotary Head: H18 Max torque 175 kNm with cardan joint

Winches: Main 160 kN, auxiliary 70 kN

Pull-Down Winch: Crowd/Extraction Force 280 kN, Stroke 12.300 mm

Kelly Bars: (dia. 355mm) with upper guide: 4 x 7,5 interlocking type (kelly box 130x130mm)

Accessories Included: Automatic greasing system, 3 video cameras (one for space behind the rig, one for the right side, one to control winches, pre-heating operator’s seat Note

This rig is equipped for Rotary drilling -CFA-FDP

Arrangement for rapid CFA-R version complete with:

Special adapter for drive sleeve

Wedge for jib

Female half joint for augers

1.3m upper mast extension

125mm (5″) inner diameter sleeve complete with: 125 mm i.d. swivel for concrete

Swan neck for concrete pipes

Short drive sleeve for CPA complete with reaction bar and inner reduction,

6 m long drive sleeve for CFA complete with reaction bar and inner reduction

Lower centering guide, standard type, for CFA-R arrangement

Min dia: 300mm

Max dia: 900mm

Interaxle: 800mm

Complete with specific mast support.

Reduction of lower centering guide for continuous auger Dia: 400mm High: 850mm

Reduction of lower centering guide for continuous auger

Dia: 600mm

High: 850mm

Reduction of lower centering guide for continuous auger

Dia: 800mm

High: 850mm

Centering guide for FDP arrangement Dia: 280mm rods

5″ dia. concrete feed pipes – for CFA/FDP arrangement.

Hydraulic circuit for star type auger cleaner Star type auger cleaner.

Rigid wheel for star type auger cleaner

38,000kg Operating Weight
