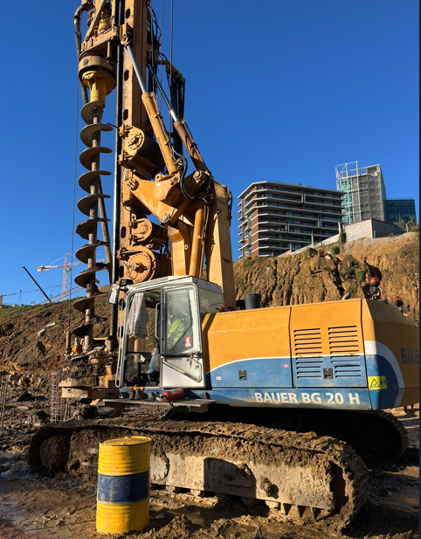

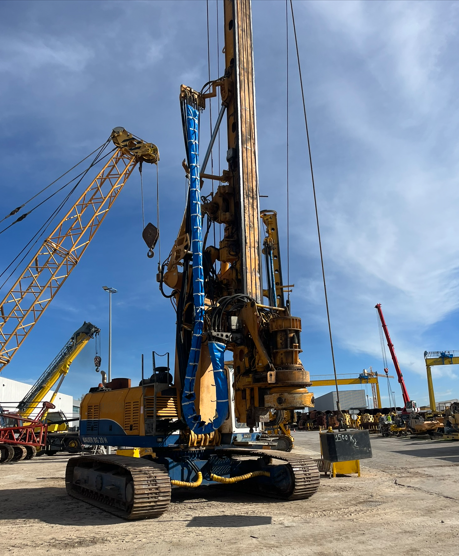

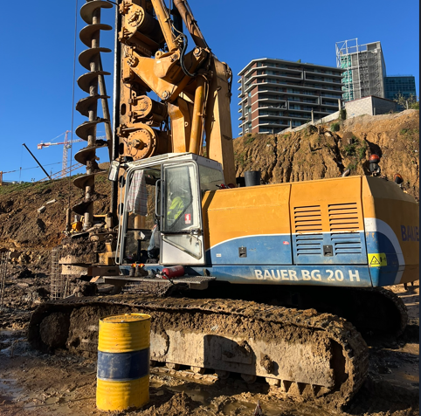

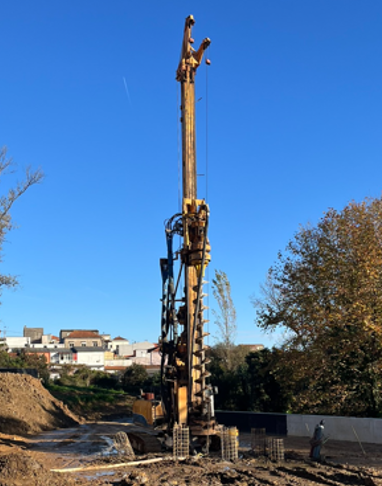

Bauer BG 20H CFA/Rotary Piling Rig

Used Bauer BG 20H CFA/Rotary Piling Rig for sale.

15,700 Hours

Dual system rig for CFA Piling and Rotary piling

Includes CFA kit and 32m Kelly bar

Rotary Drive (KDK 203SL Motor)

Max Torque / Speed: 203 kNm @ 8 rpm

Power: 210 kW / 280 hp

Max Fuel Consumption: 50 L/h

Crowd System (Cable Type)

Drilling Stroke: 8.385 m (with BK 18/368/4/40 kelly bar)

Crowd / Retraction Force: 260 kN

Cable (Up/Down): 22 mm diameter / 58 m length

Fast Speed (Up/Down): 24.2 / 25.6 m/min

Slow Speed (Up/Down): 6.3 / 6.7 m/min

Winches

Main Winch (Free Fall): 26 mm anti-rotational cable, 60 m length, 170 kN max line pull, 55 m/min max winding speed

Auxiliary Winch (No Free Fall): 15 mm anti-rotational cable, 50 m length, 55 kN max line pull, 93 m/min max winding speed

Max Drilling Diameter (Uncased): 1,500 mm (1.90 m max structural limits noted elsewhere)

Max Drilling Diameter (Cased): 1,350 mm

Casing Length (Without casing oscillator): Hw – 0.6 m

Casing Length (With casing oscillator): Hw – 1.5 m

Max Closed Kelly Bar Length (A max): 15.103 m

Configuration with Kelly Bar BK 18/368/4/40

Telescopic Elements: 4 elements / 40 m nominal depth

Closed Length (A): 12.400 m

Open Length Unlocked (B) / Locked (B1): 43.00 m / 42.65 m

Max Height Below Tool (Hw): 4.722 m

Operating Weight (with BK 18/368/4/40 bar): 61 t

Machine + Counterweights + Rotary Drive: 52.3 t

Machine + Counterweights (No Rotary Drive): 48.3 t

Machine (No Counterweights, No Rotary Drive): 48.3 t
